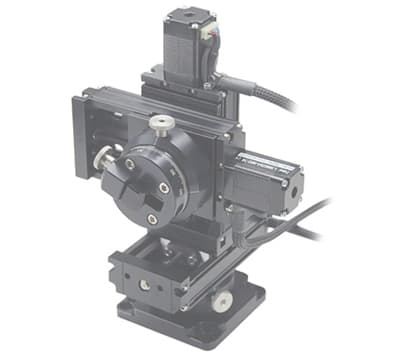

Motorized Micromanipulators
Zaber's motorized micromanipulators are plug and play, stand-alone units which are either joystick or computer controlled. They can be mounted to metric or imperial breadboards and can be oriented to the left or the right. Each micromanipulator includes controllers and a joystick.
With 25 mm travel, these systems offer a resolution finer than 0.05 µm and up to 14 mm/s speed and 15 N thrust.
The adjustable probe holders can be rotated 360 degrees. Thumbscrews on the left and top of the holder lock the angle at which they are held, and they adjust to accommodate probes with a diameter between 2 and 13 mm.
The 3-axis joystick (included) has 8 programmable keys for functions such as storing and recalling positions. It also has a 4th virtual axis to allow approach along the probe angle. Each axis is controllable in velocity mode with adjustable sensitivity.
(USD) Price Starting at:$NaN
For detailed information or to generate a quote or order, visit our Micromanipulator series overview page.
